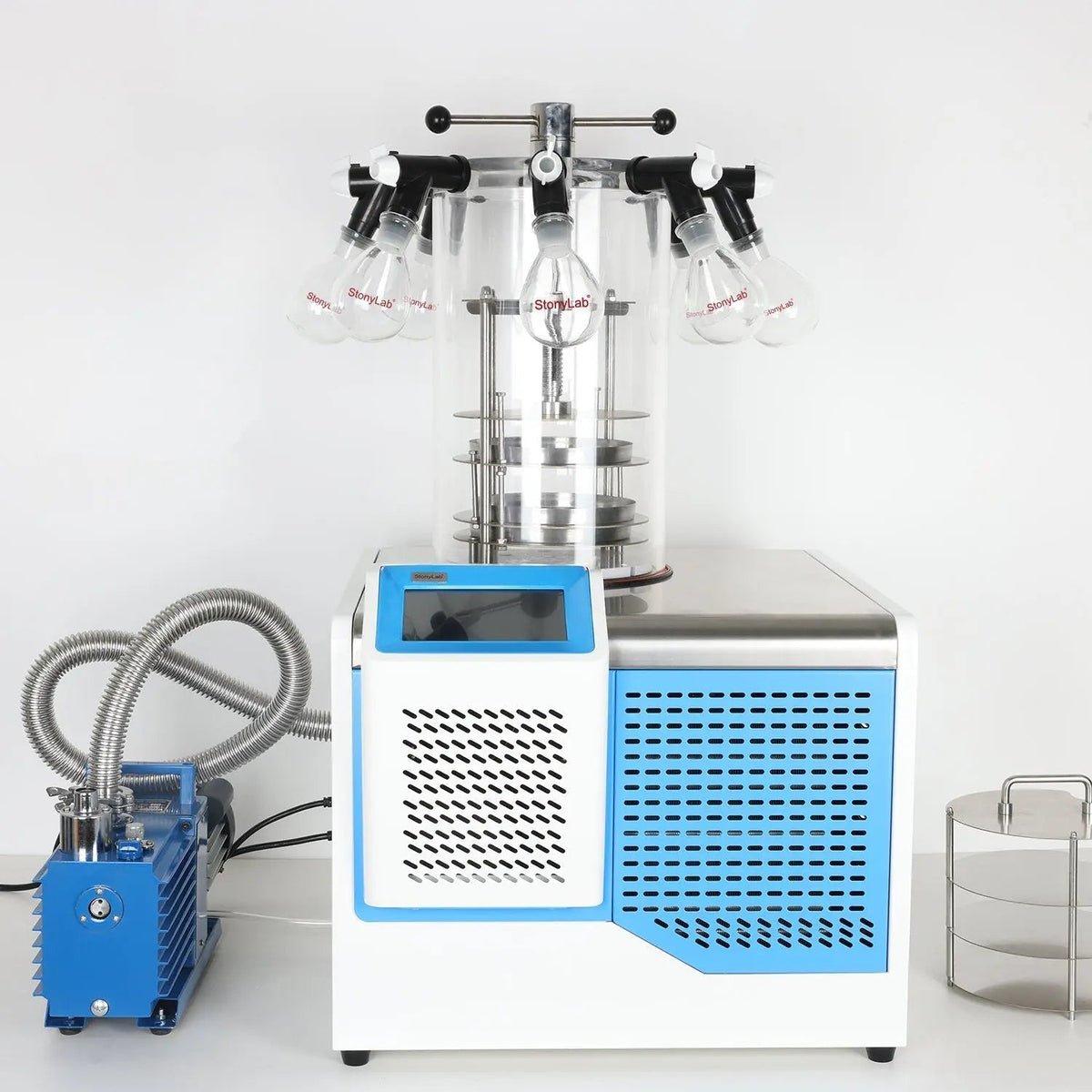

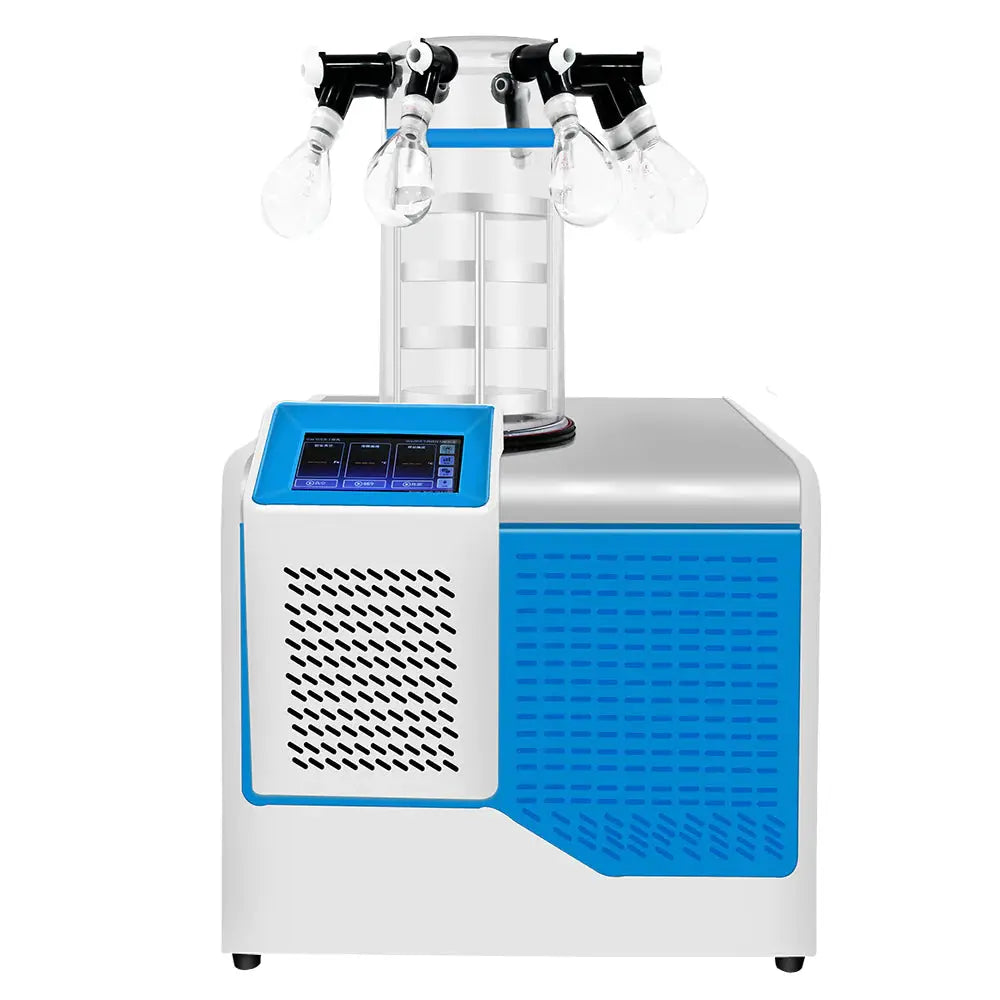

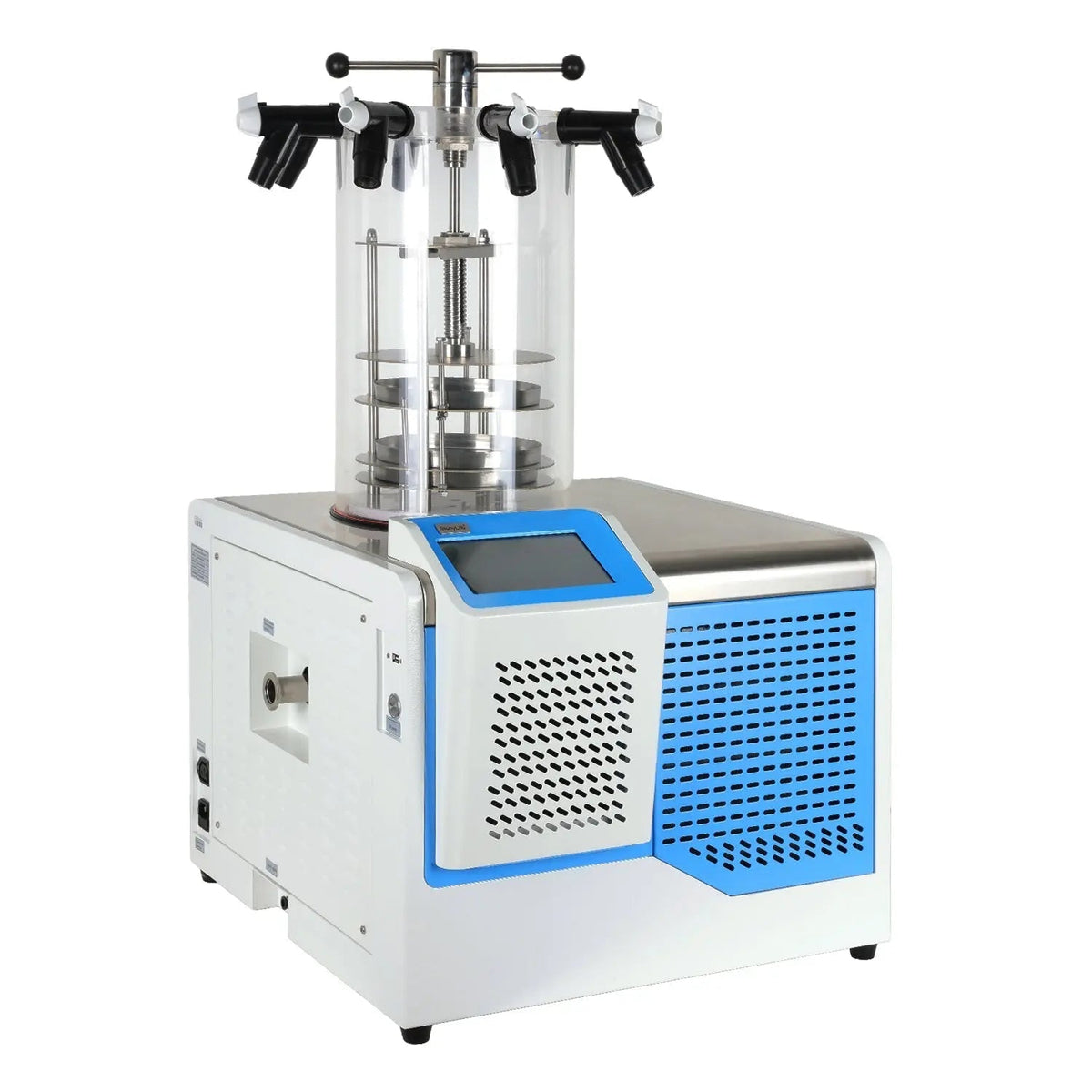

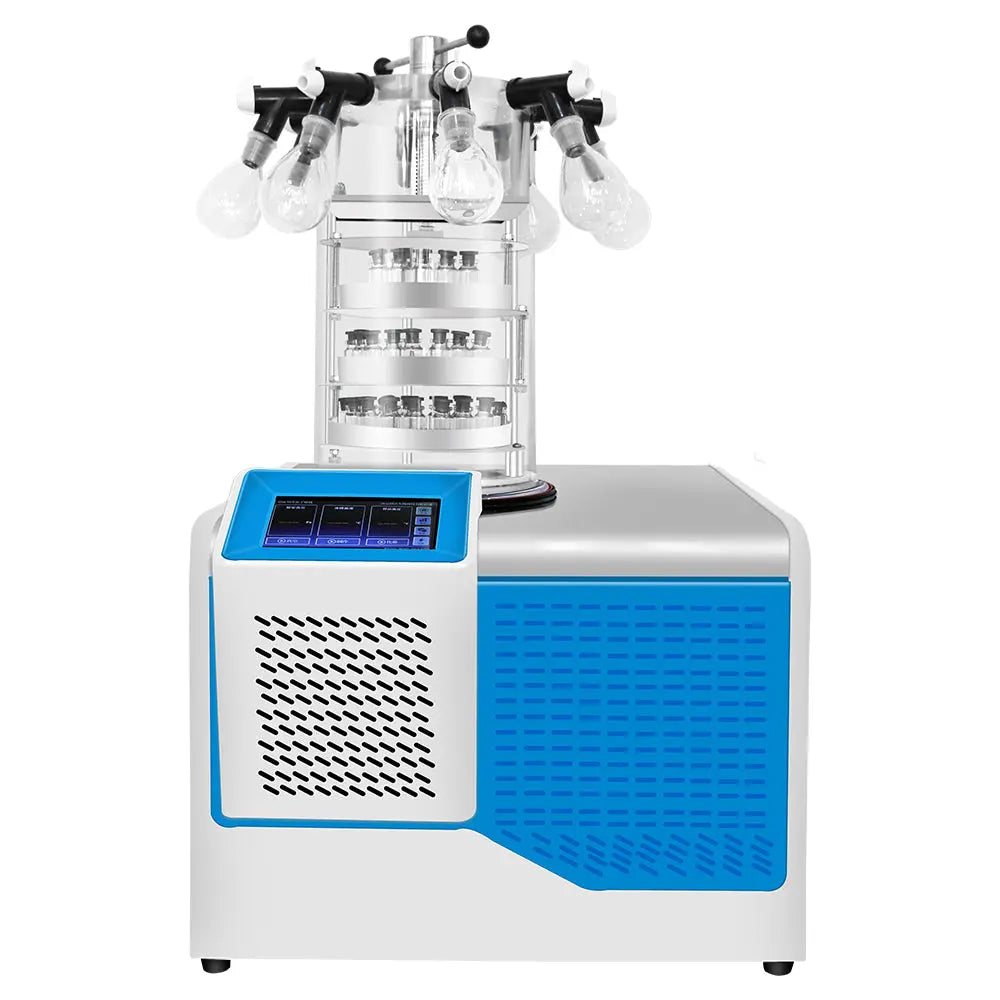

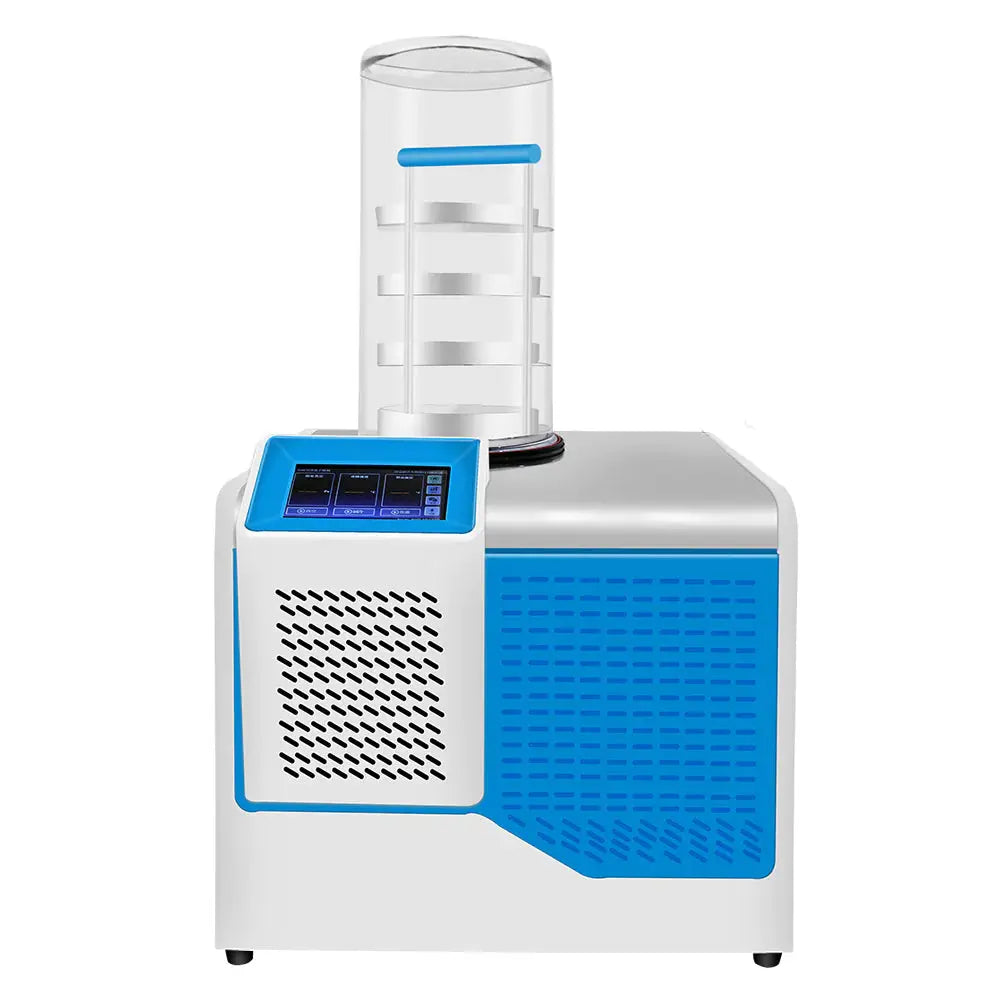

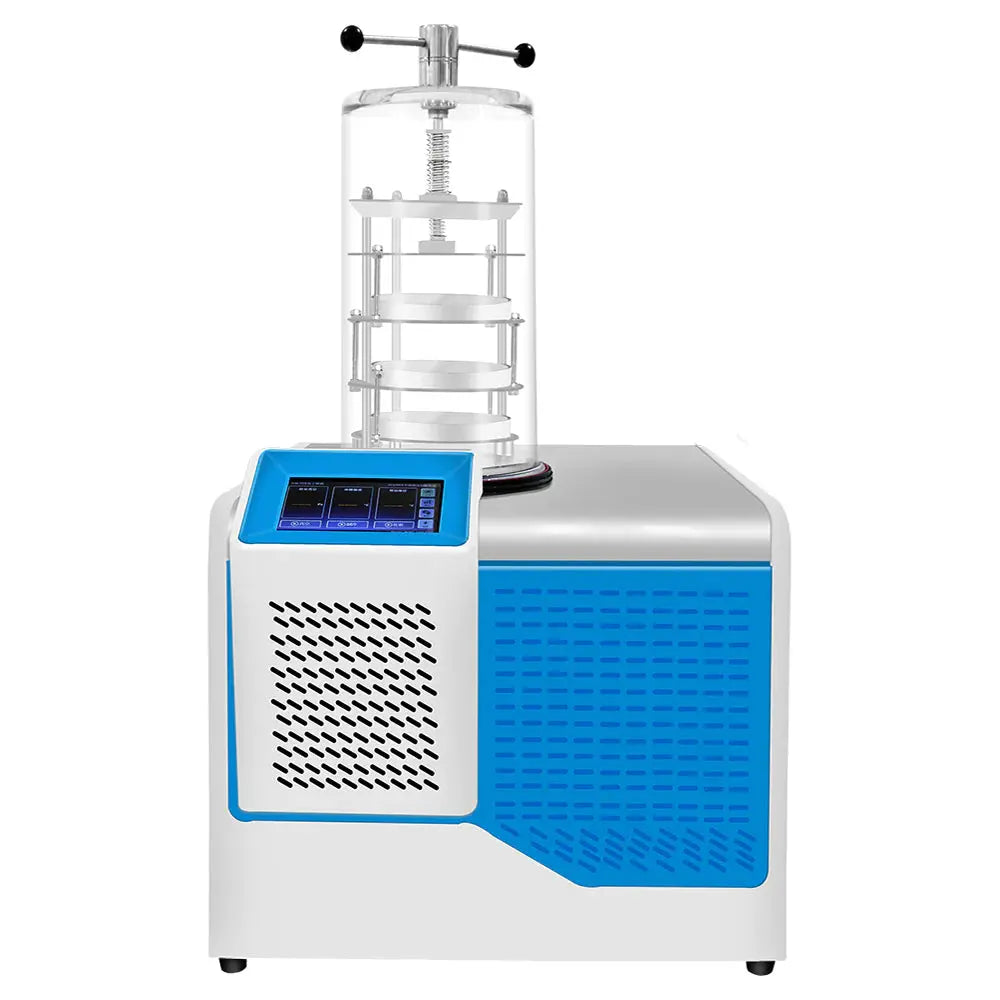

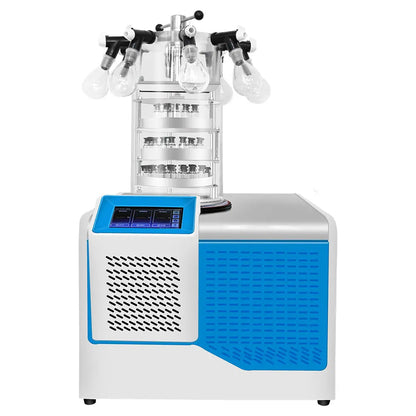

StonyLab Benchtop Freeze Dryer with Vacuum Pump -60°C 4kg

$3,695.99 USD
$3,695.99 USD
Sold out
Taxes included. Shipping calculated at checkout.
Power Supply: 110V/60Hz
Type: Standard Type

Description

Caret Down

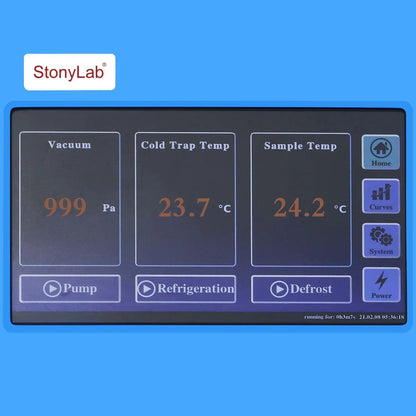

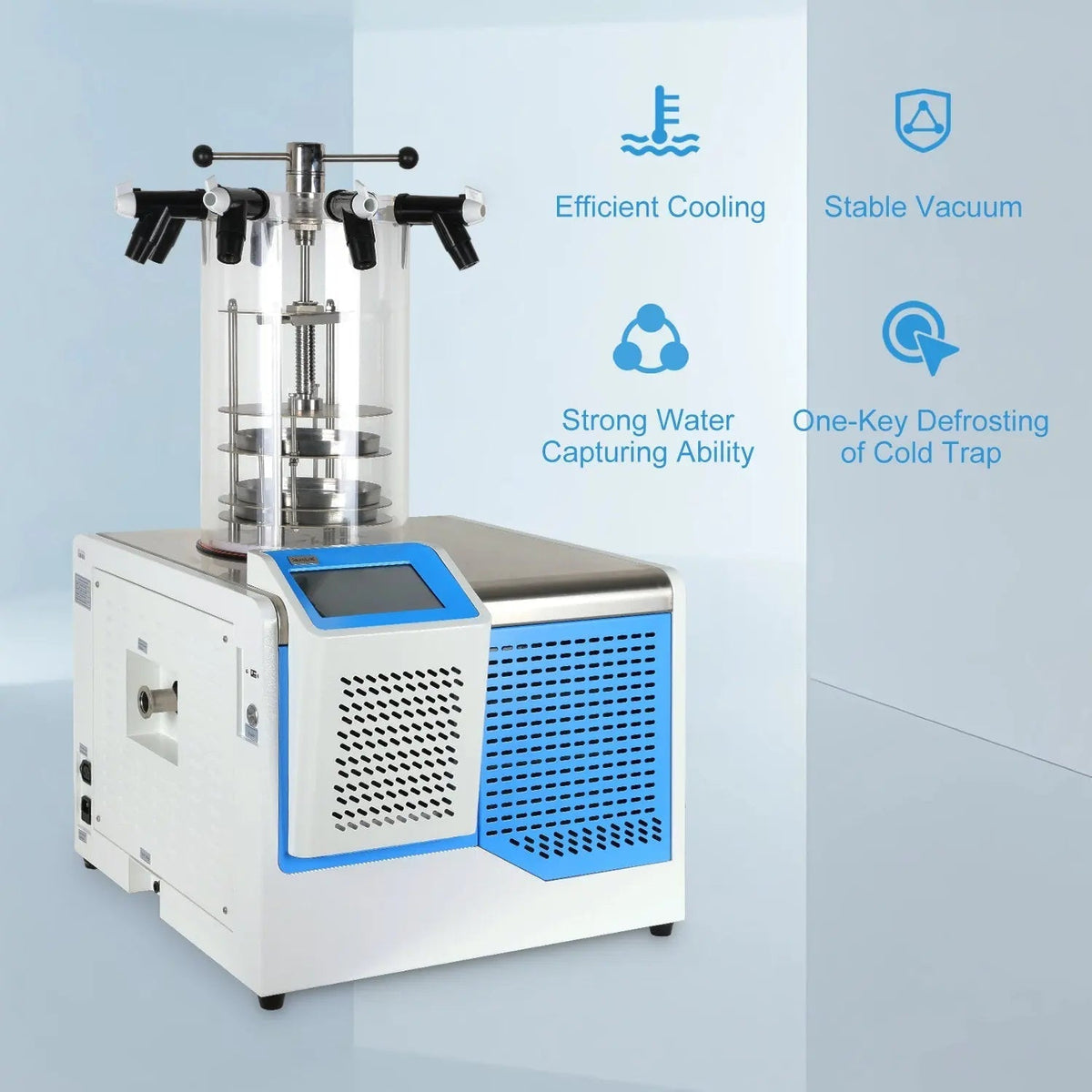

This StonyLab benchtop freeze dryer is engineered for laboratory-scale freeze-drying and pilot research, removing moisture through low-temperature freezing and vacuum sublimation. It operates with a -60°C cold trap, rapid cooling, uniform temperature control, and built-in pre-freezing and defrost functions to preserve sample morphology and maintain stable conditions during long runs.

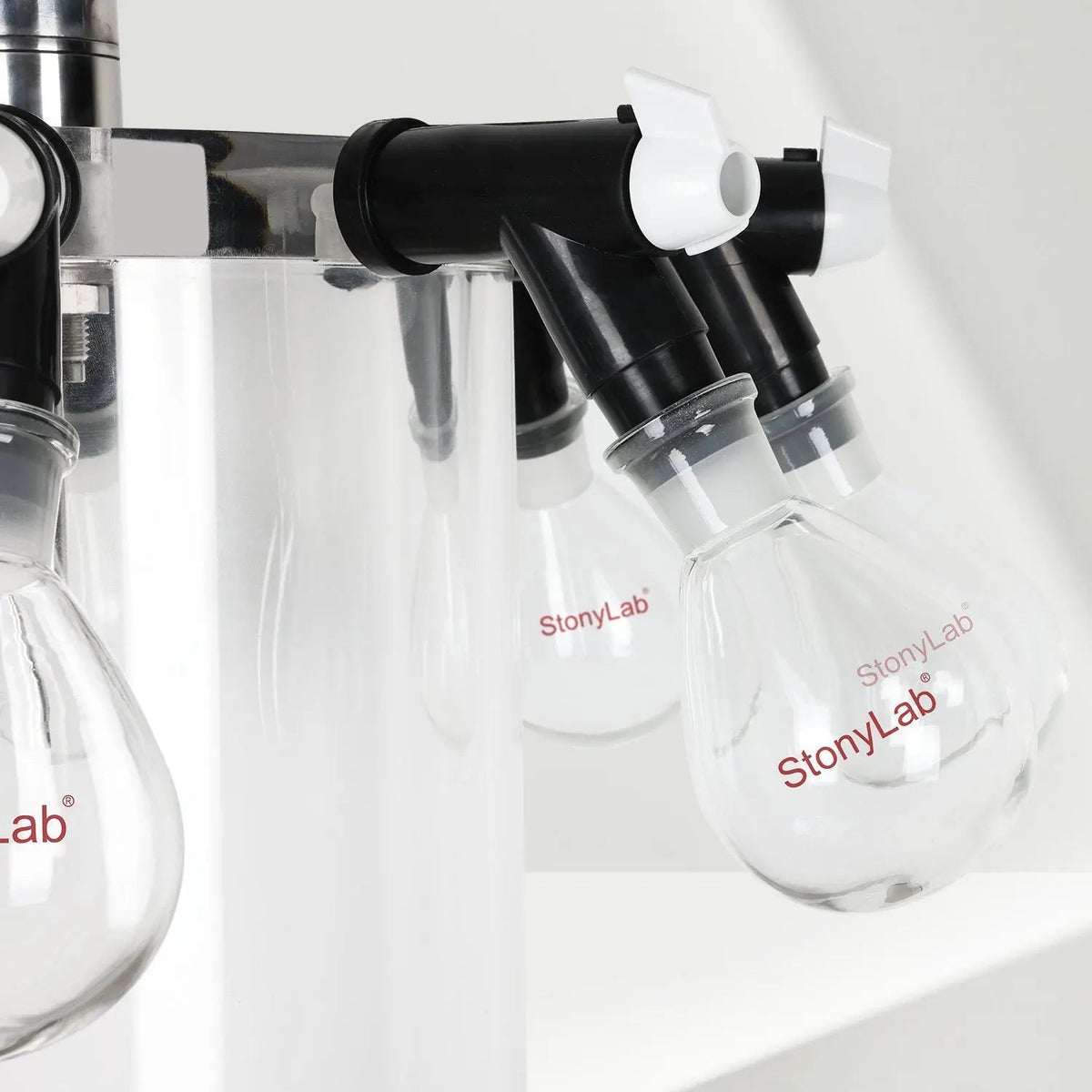

Featuring a 0.08–0.12 m² drying area and a water capture capacity of up to 4 kg per batch, the system comes complete with a vacuum pump to support efficient moisture sublimation. It accommodates a wide variety of containers, including ampoules, vials, glass flasks, plasma bottles, Petri dishes, and stainless-steel trays for both bulk and specialized research applications.

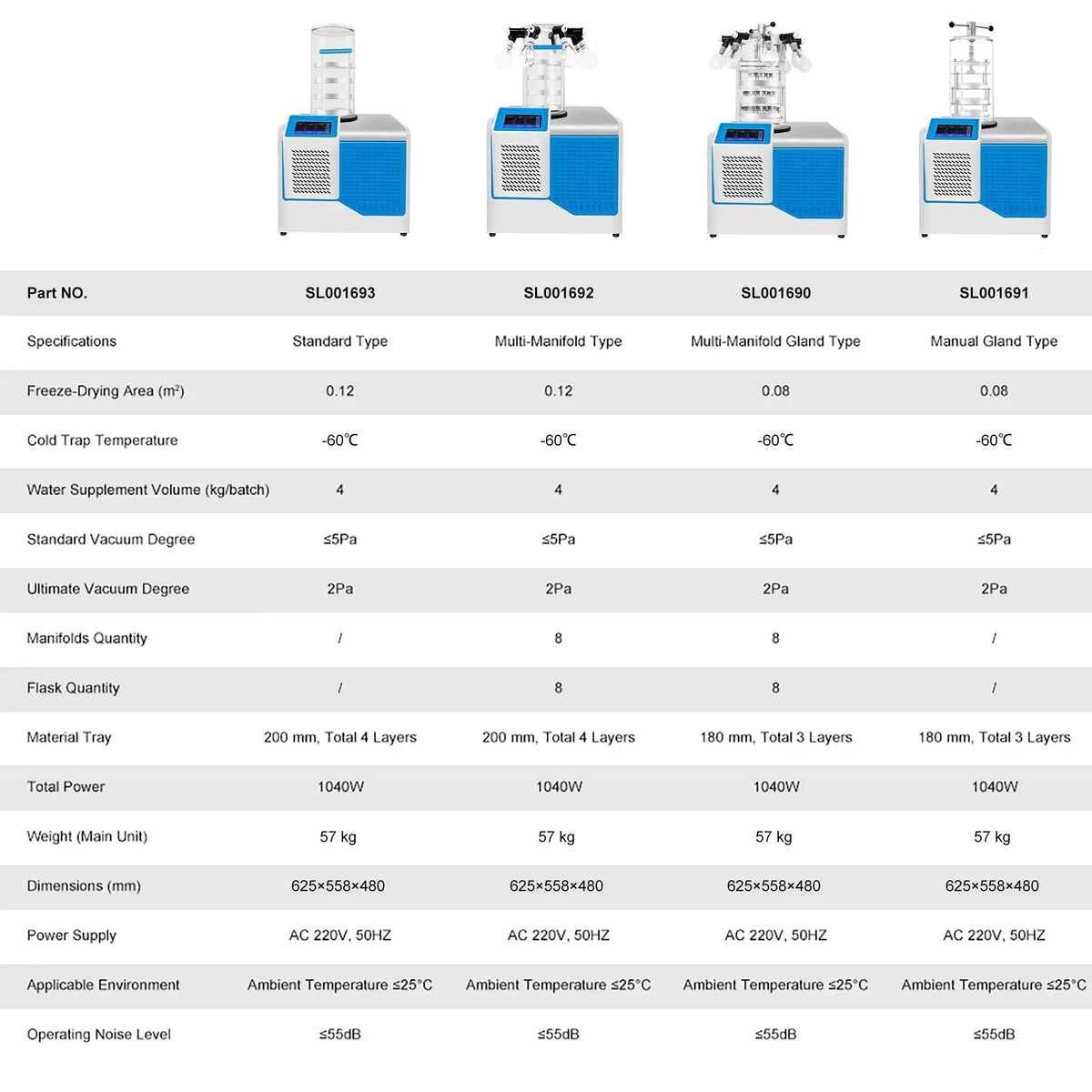

Key Features

Cold Trap Temperature -60°C

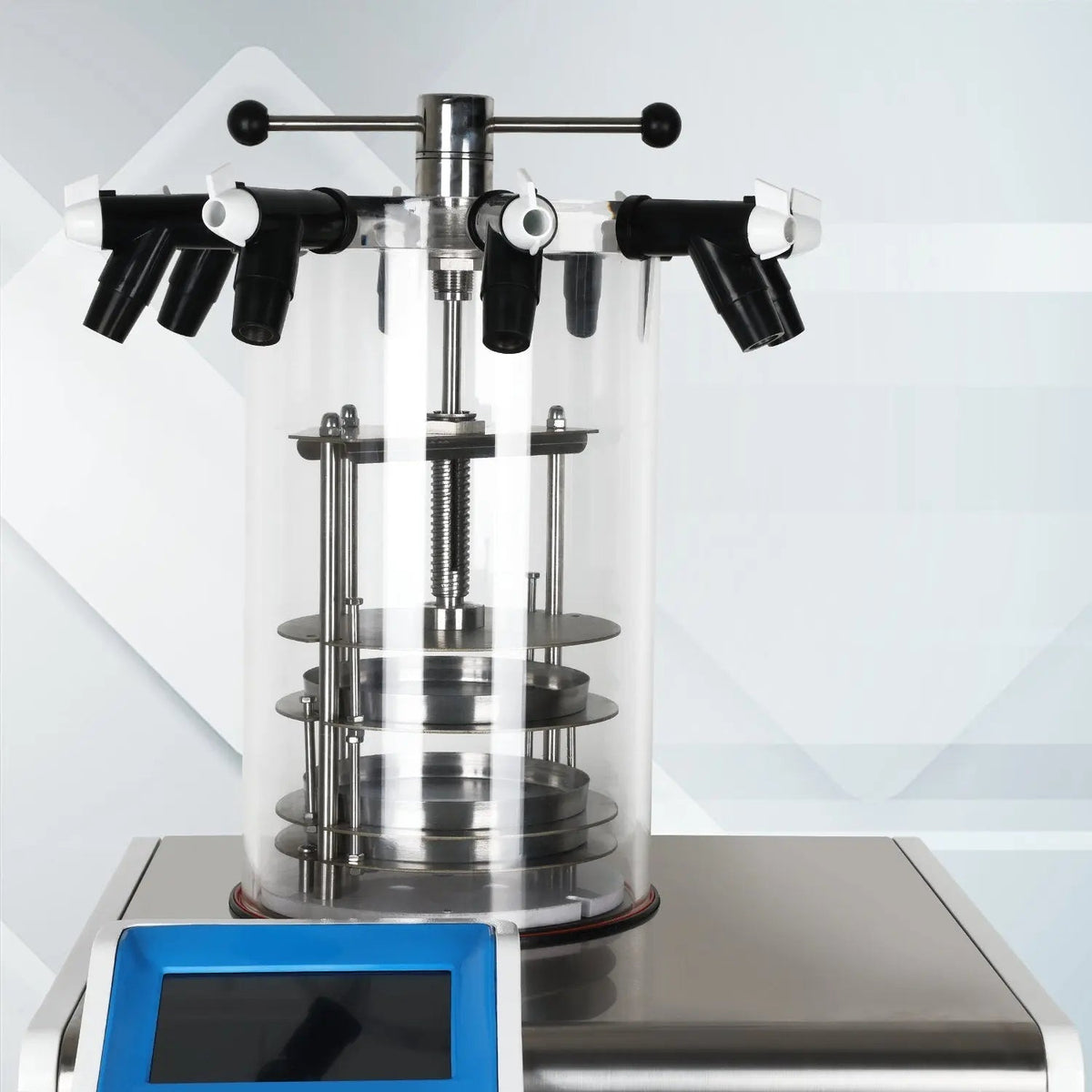

Drying Area 0.08–0.12 m²
Water Capture Capacity Up to 4 kg/batch
Freeze-Drying Functions Pre-Freezing & Defrost
Vacuum System Included Vacuum Pump
Recommended Pump Oil Vacuum pump oil with viscosity grade 100 (ISO VG 100)

Videos

Frequently asked questions

What is the water capture capacity of this freeze dryer?

The freeze dryer has a water capture capacity of up to 4 kg per batch.

What is the operating temperature of the cold trap?

The cold trap reaches a operating temperature of -60°C.

What type of pump oil is recommended for the included vacuum pump?

Vacuum pump oil with a viscosity grade of 100 (ISO VG 100) is recommended.

What sample containers can be used with this system?

It supports freeze-drying in ampoules, vials, glass flasks, plasma bottles, Petri dishes, and stainless-steel trays.

Reviews

Caret Down

Terms and conditions

Caret Down
View full details
StonyLab Benchtop Freeze Dryer with Vacuum Pump -60°C 4kg
StonyLab Benchtop Freeze Dryer with Vacuum..
Caret Down

Recommended products

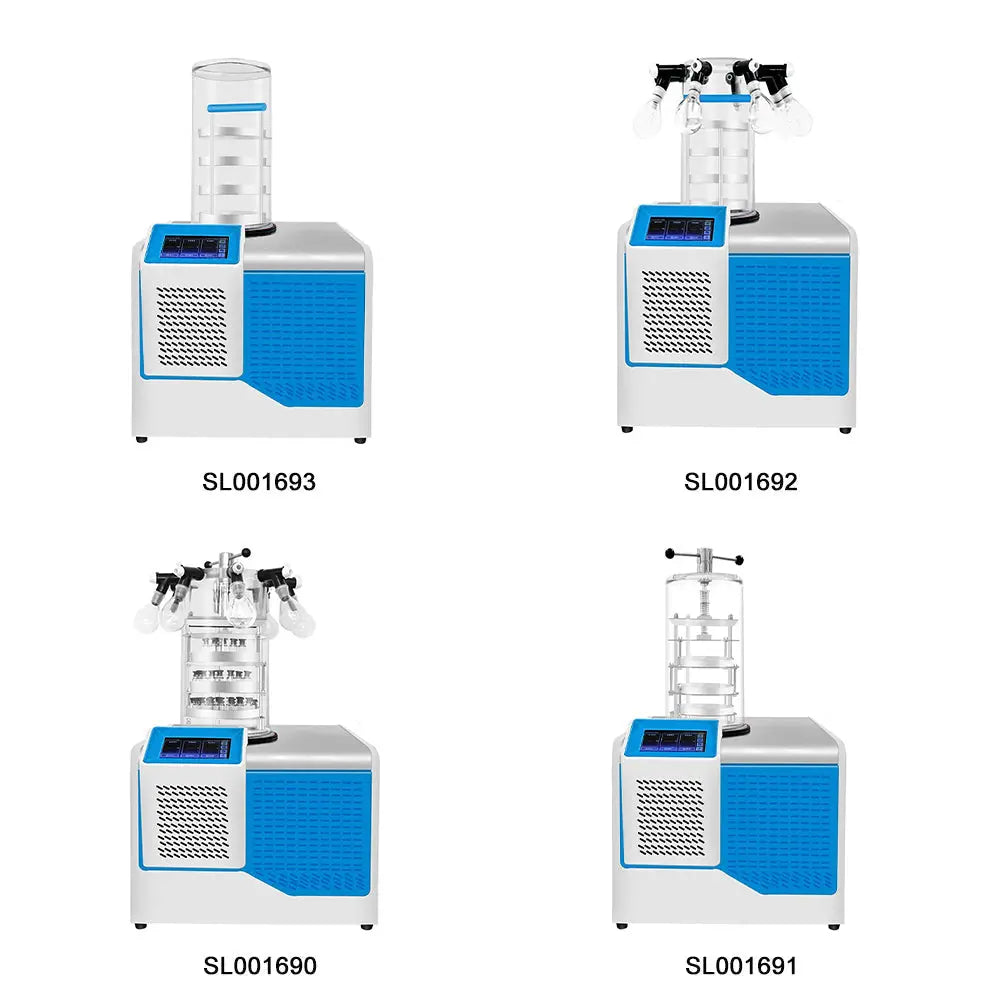

Variant Variant total Quantity Price Variant total
